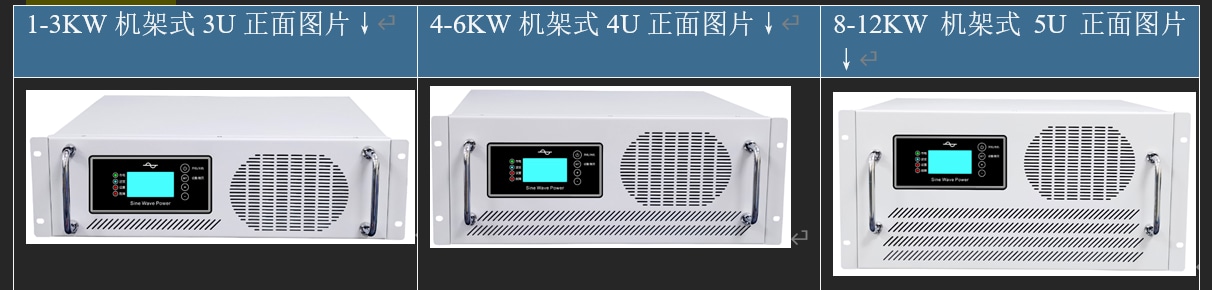

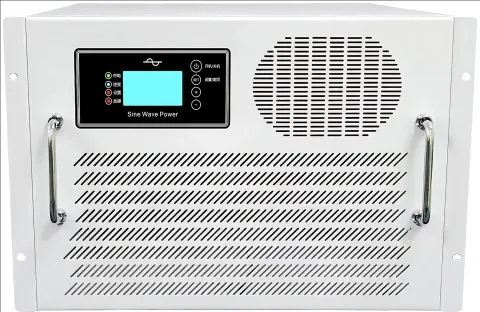

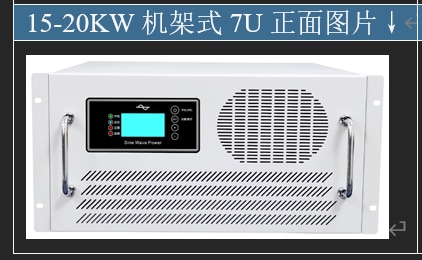

UPS, 20 KW, Battery Volt 192/220/240 V, Industry frequency mode, Racked type, Equipment only, A2

Product Name                   :  UPS, 20 KW, Battery Volt 192/220/240 V, Industry frequency mode, Racked type, Equipment only, A2

PRICE                                    :  see below

Minimum Quantity           :  1  piece/ID/order

Model                                    :

In one Unit                           : 1 product , one 3m extended switch board, one 3m extended LED display(equipment only)

Product Warranty             : one year

Accessories (optional)   : see below

Keywords:

UPS system,

uninterruptible power supply,

industrial UPS,

offline UPS,

custom UPS system,

UPS for data center,

UPS for industrial equipment,

UPS for telecom system,

UPS for medical equipment,

modular UPS,

high efficiency UPS,

lithium battery UPS,

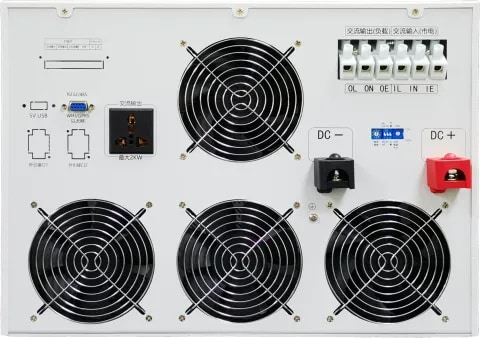

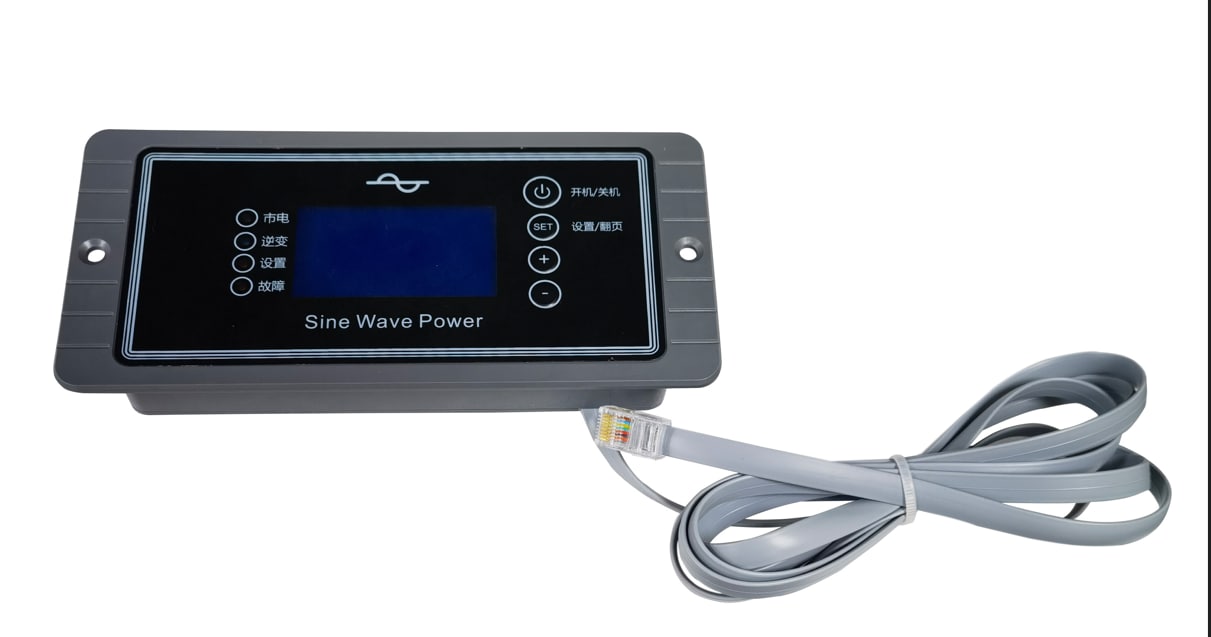

Accessory: one 3m extended LED display

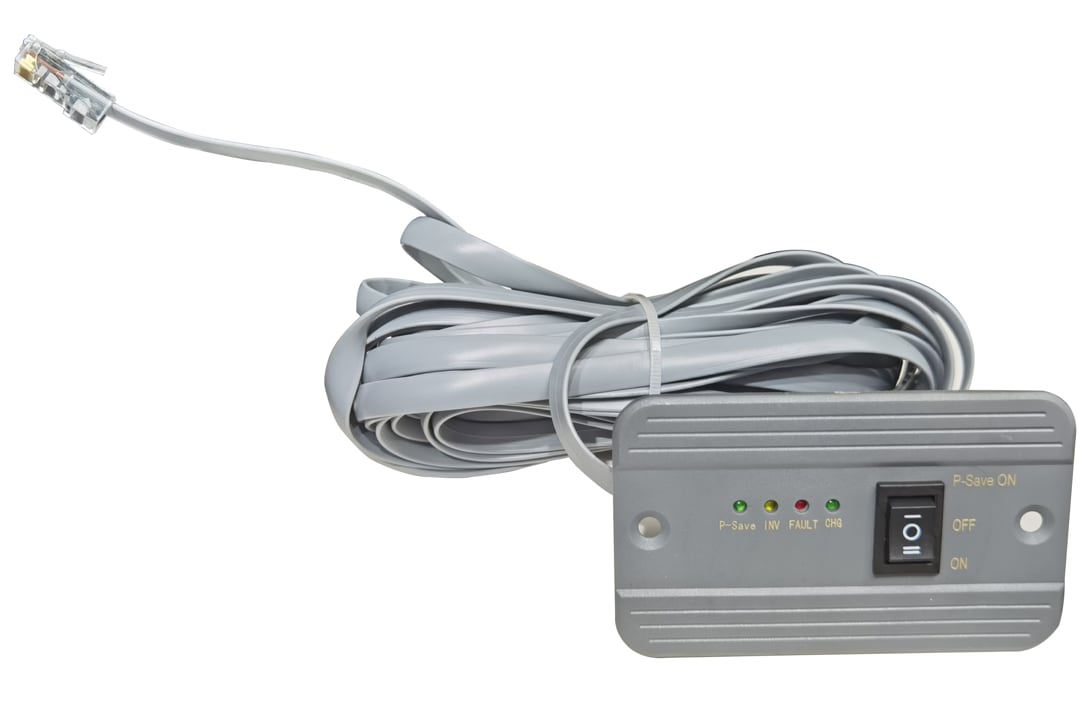

 Accessory: one 3m extended switch board

About this item

. 1KW~20KW off-grid UPS

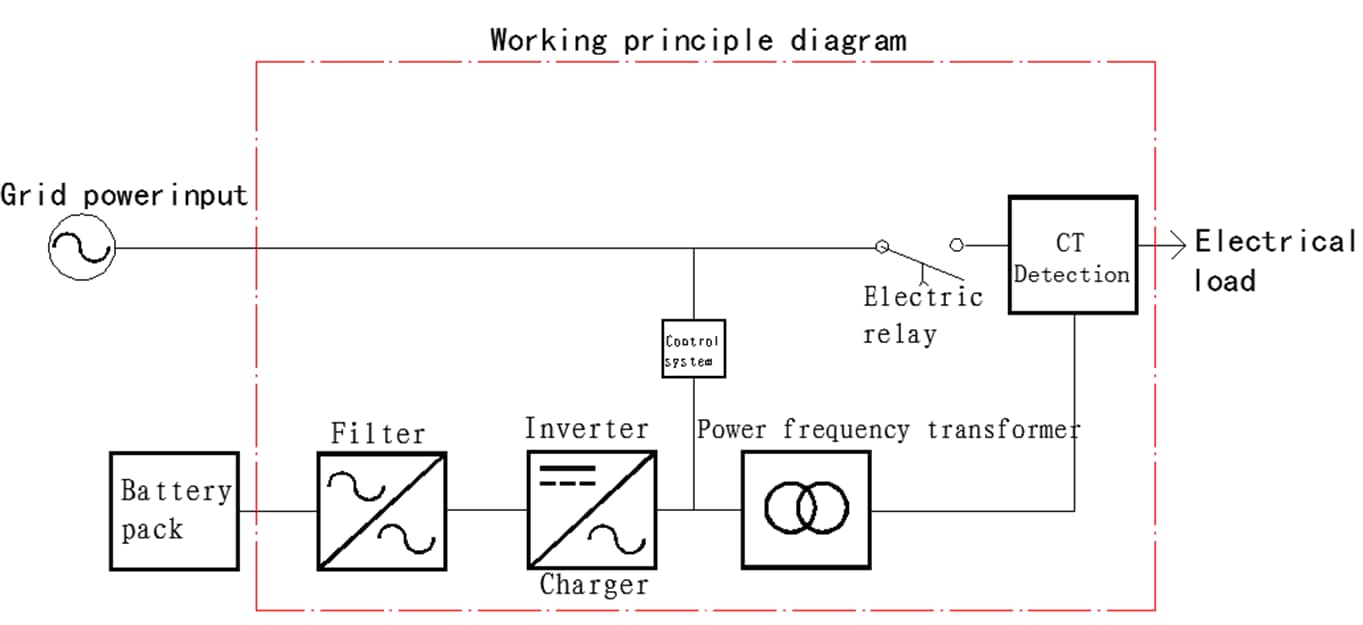

. The Industry-frequency UPS power supply integrates DC to AC inverter and battery charger.

. With built-in isolation transformer, DC to DC isolation, DC to AC isolation.

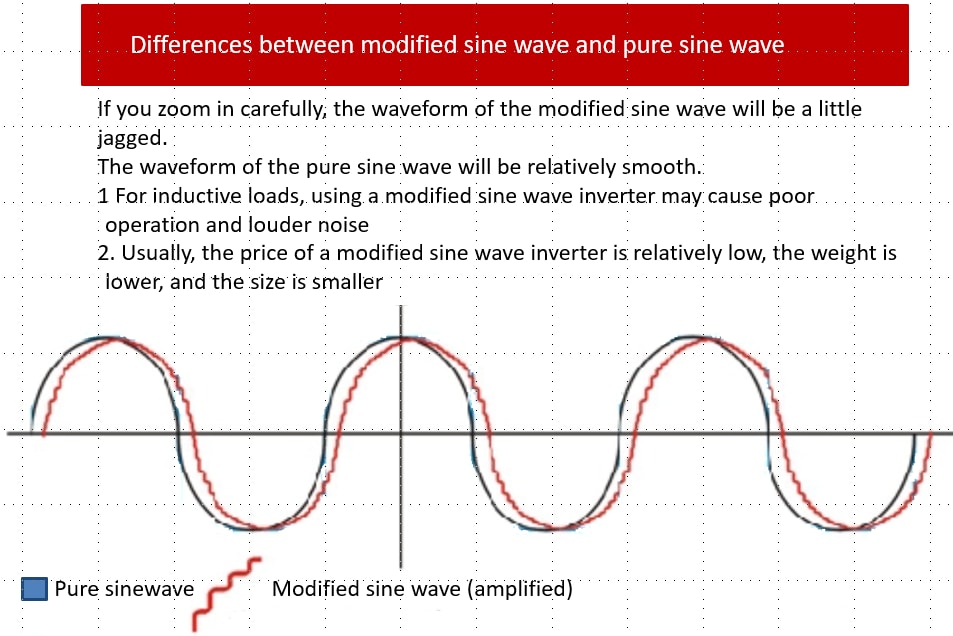

. Pure sine wave output, fast UPS conversion design (<5ms).

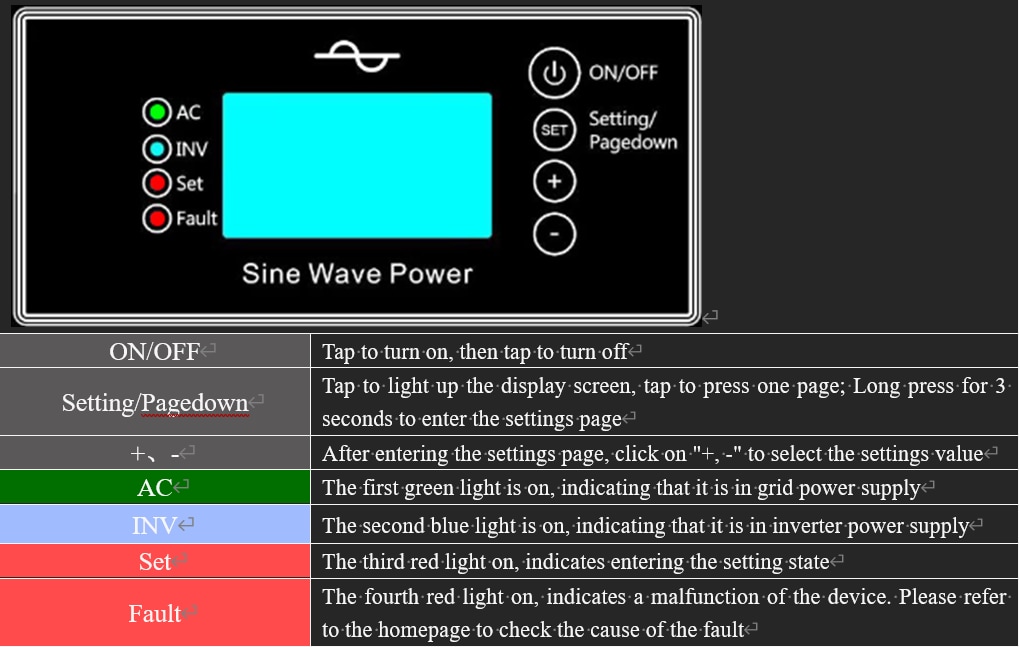

. LCD display, real-time display of operating parameters, status, fault information, easy to quickly identify and solve problems. All

 parameters can be set in the background.

. High conversion efficiency, extremely low idle consumption. Small size and light weight.

. Comprehensive protection mechanism, including low voltage, high voltage, high temperature, short circuit, overcurrent, overload.

Application scenarios

Power backup:                                         battery charging and backup

Emergency power supply:                       emergency power backup to prevent sudden power outages

Small energy storage:                             small energy storage and backup scenarios, energy storage system main components

Charging:                                                can be used as a high-power charger

Onboard backup:                                    onboard, marine and other charging and storage scenarios

Technical parameters

Rated battery voltage                   DC 192/220/240V

Output power specification          20KW

UPS conversion time                   <5ms (UPS mode)

AC input range                            170-280Vac or 85-140Vac (UPS mode); [170-280Vac for 15KW,18KW,20KW]

Input frequency range                40-65HZ (recovery point: 42HZ, 63HZ)

AC output voltage                       220Vac±3% optional or 100/110/120Vac±3% optional; [220Vac±3% for 15KW,18KW,20KW]

Inverter peak efficiency                                        95%

Output waveform                             Pure sine wave (full voltage range)

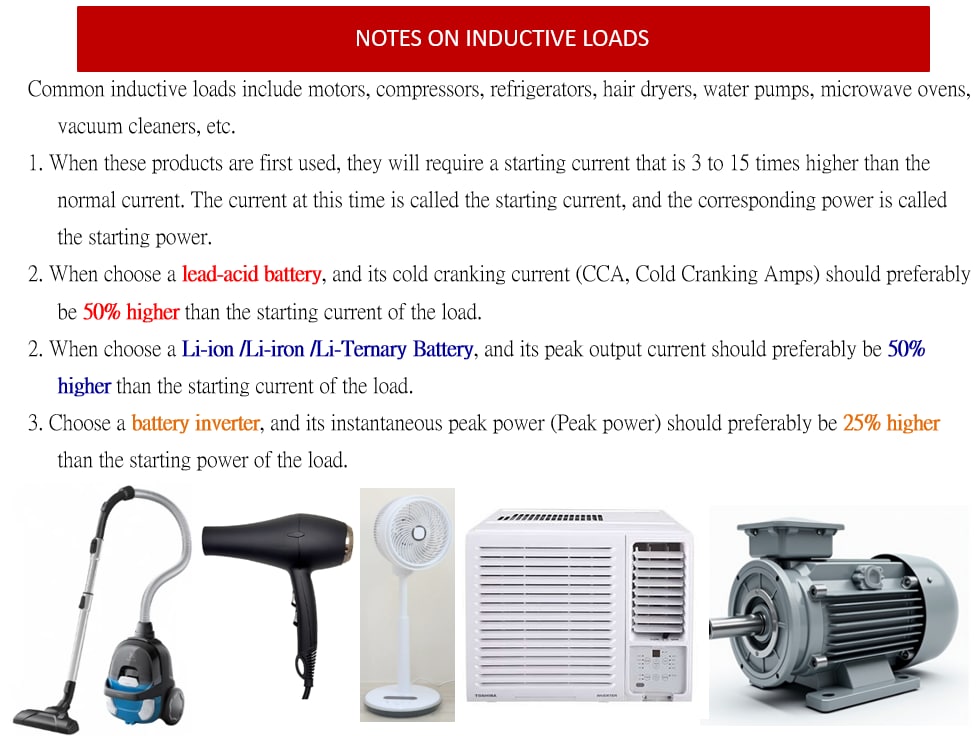

Peak power                                3 seconds 2 times rated power (surge capability)

Ambient temperature                               -20℃~+50℃

Usage altitude (m)                     ≤ 2000 (capacity reduces where altitude higher than1000m,

                                                   roughly 10% capacity reduction for each increase of 1000 m)

Cooling method:                       Temperature-controlled variable speed fan heat dissipation

Insulation strength:                   1500Vac, no breakdown for 1 minute

Insulation resistance:                Not less than 2M Ω

Protection function:                   Over-load protection, short-circuit protection, over-temperature protection Fan-fault protection,

                                                  over-voltage protection, under-voltage protection, frequency-overlimit protection, etc.

Product certification:                 CE-EMC certification, CE-LVD certification, FCC certification, UL inspection report, type inspection report

Note: For detailed parameters and instructions for use, please consult the business personnel.

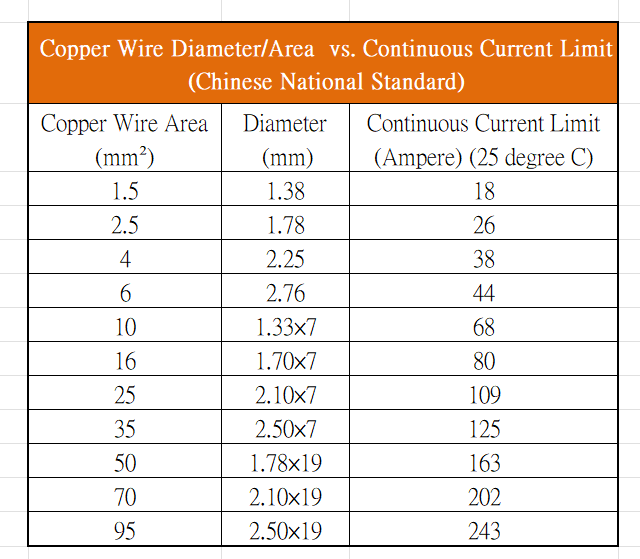

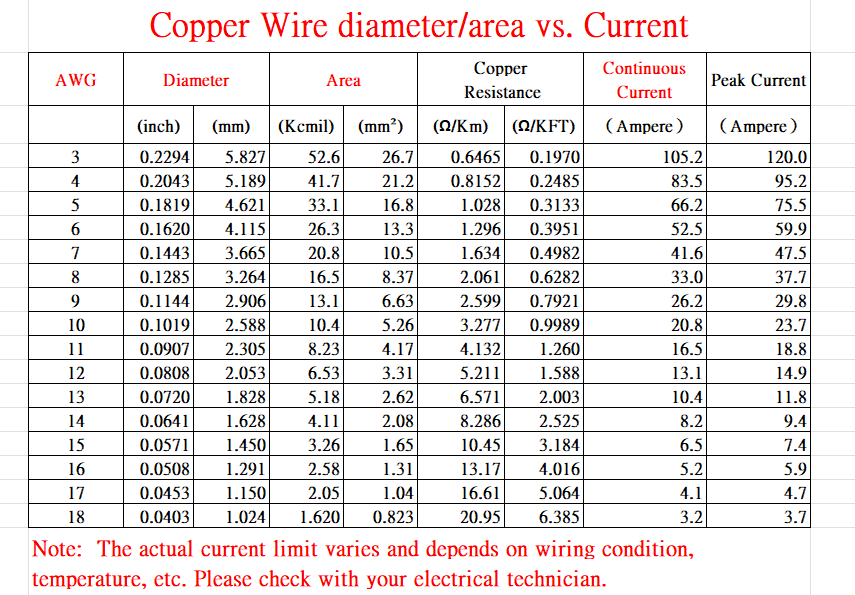

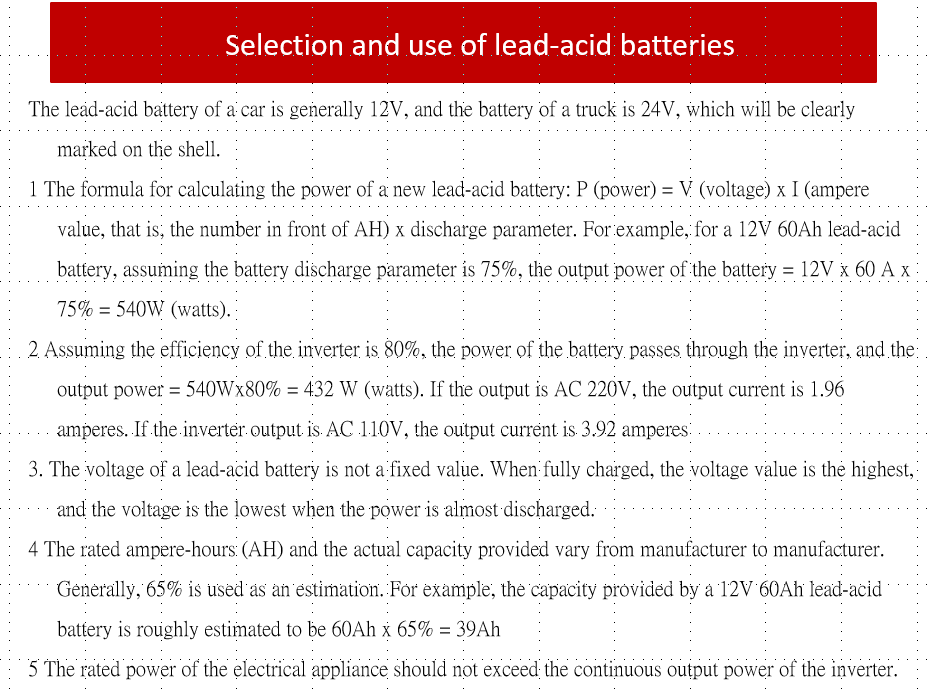

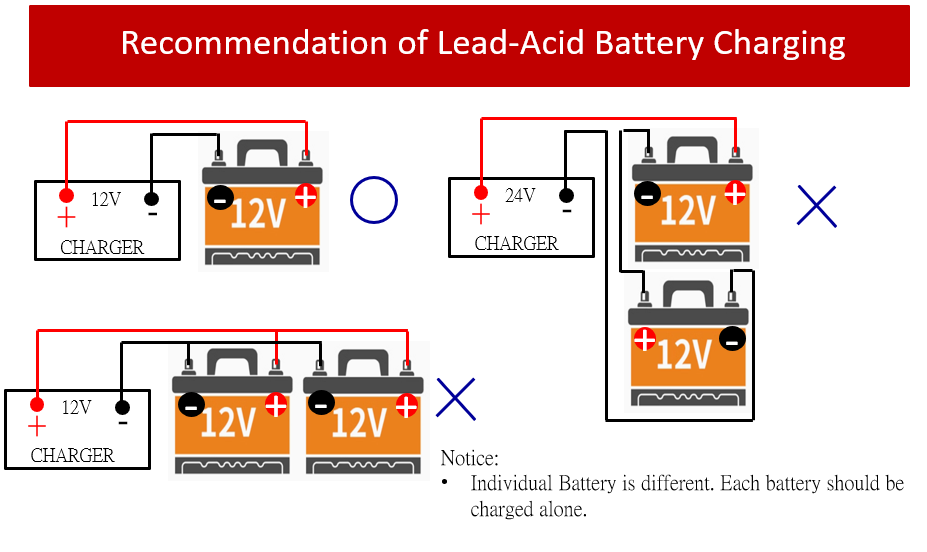

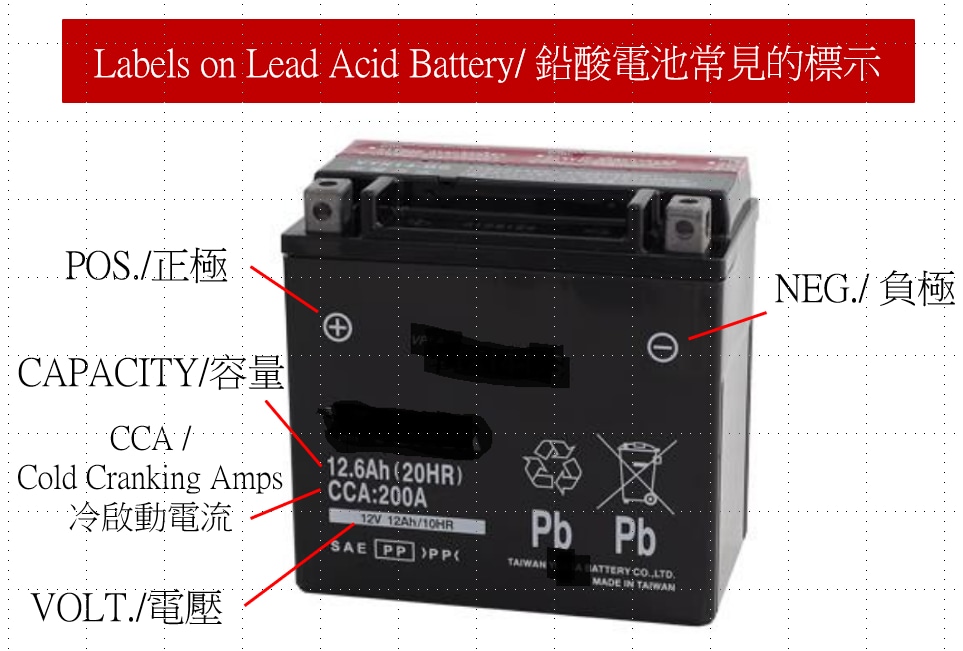

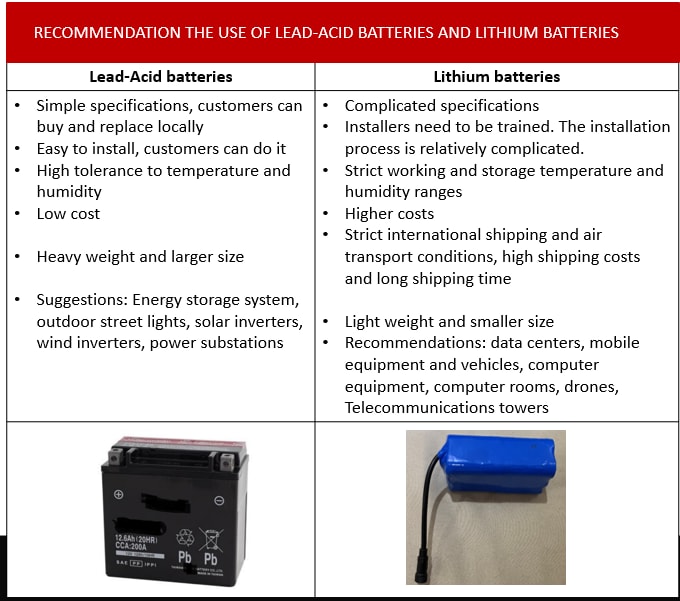

General Electrical Knowledge, you may have interests.

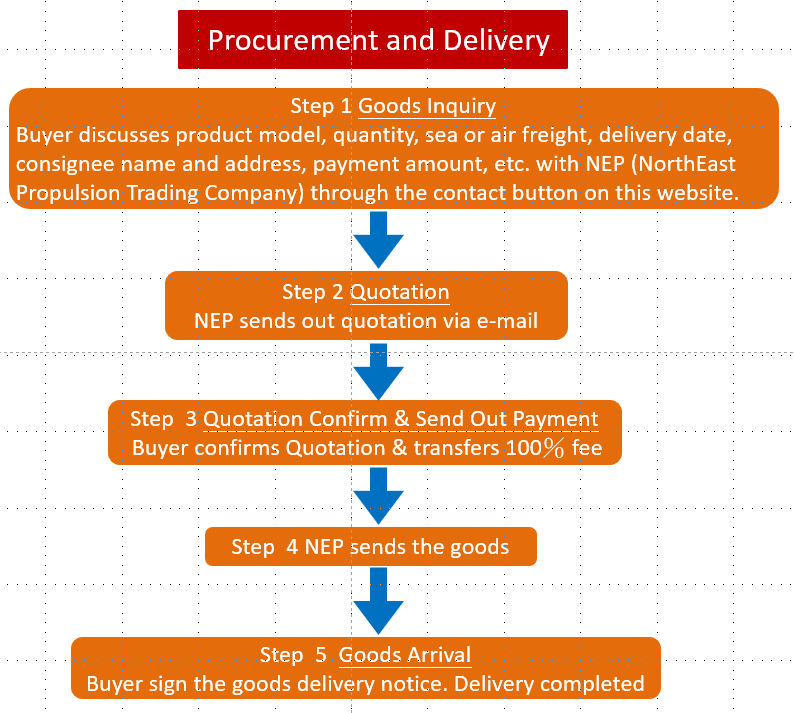

Procurement, Delivery, Goods exchange, Warranty. Have a scan before you make a decision.
